Benchmarks

🚧 Under Construction 🚧

As of 9/26/26 this is a new section and is still being developed.

I think it's useful to look through comparisons between radiate and other libraries that share this space in terms of performance and efficiency. All benchmarks are run in python on a 2020 M1 Pro MacBook Pro. The code that created the below charts and comparisons can be found in the raidate-benchmarks repository on github.

In the benchmark's project, we compare the performance and efficiency of radiate against other libraries like PyMoo and DEAP across various optimization problems. Below are the results of these simple problems, showing both the convergence quality & speed of the different libraries. Each library x problem combination is run 10 times, the best/worst/mean results & wall-clock times are recorded.

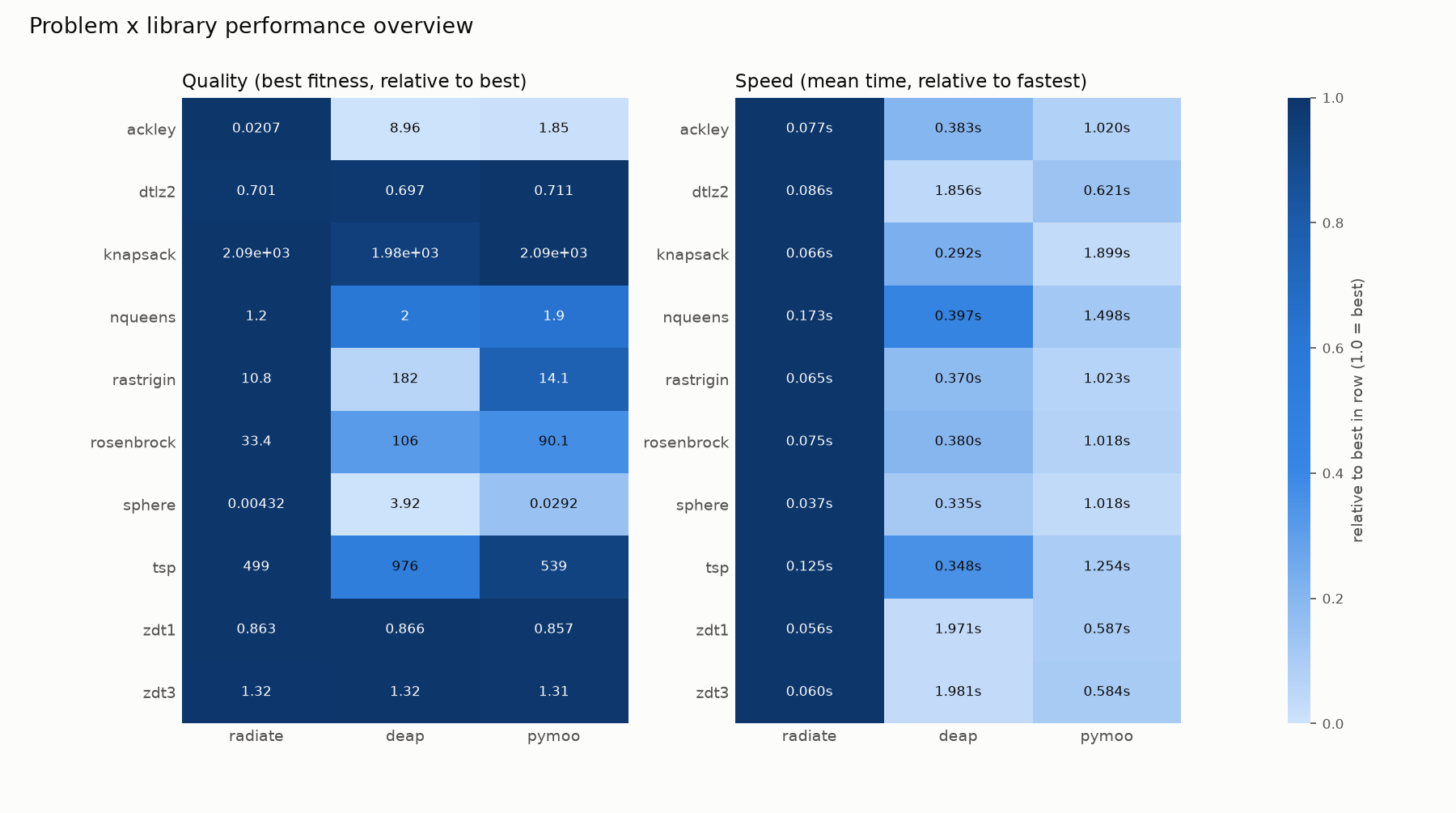

Speed Summary

Ackley

Continuous optimization using f64 precision floating-point numbers & numpy arrays.

\[ f(x) = -20 \exp\left(-0.2 \sqrt{\frac{1}{d} \sum_{i=1}^{d} x_i^2}\right) - \exp\left(\frac{1}{d} \sum_{i=1}^{d} \cos(2 \pi x_i)\right) + 20 + e \]

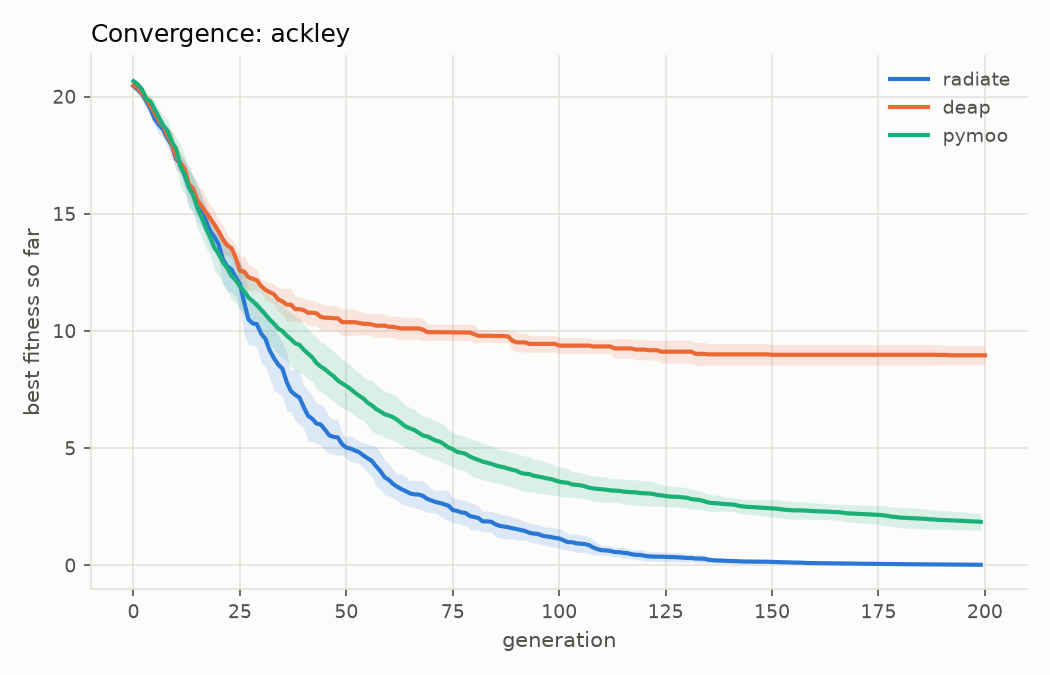

Ackley

N-Queens

Discrete optimization using usize precision integers & numpy arrays. Radiate here is using the permutation codec.

Not using optimized radiate fitness function

There are other examples in this user guide (here) that will actually produce faster & more efficient results using radiate.

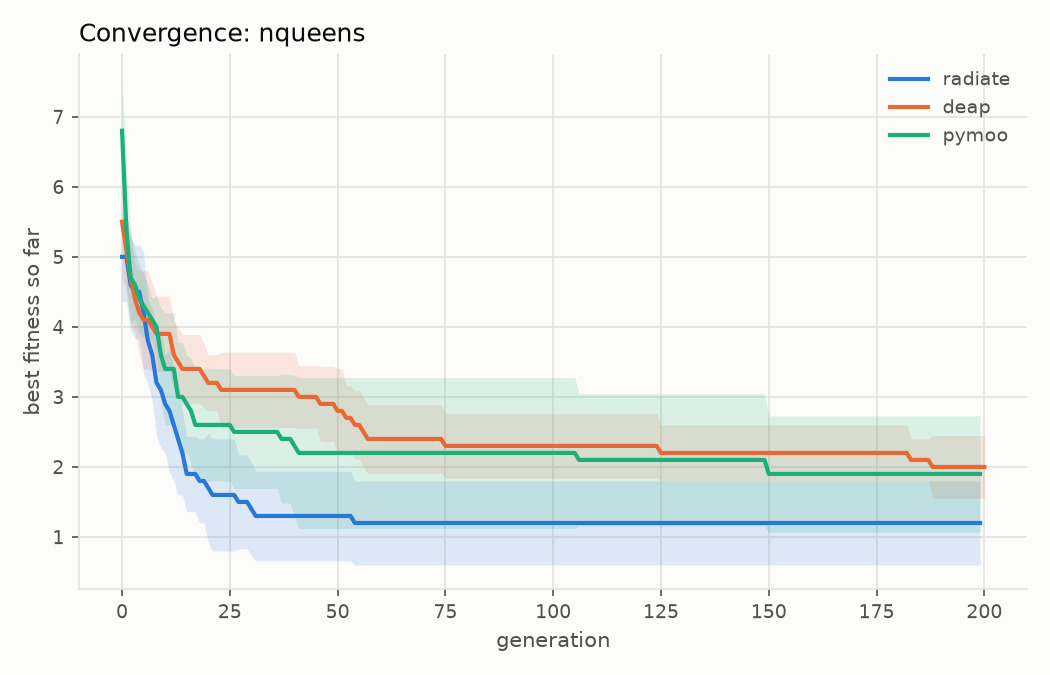

N-Queens

Multi-Objective Optimization

Below we can see the convergence of different hypervolume indicators for the zdt1, zdt3, and dtlz2 problems. These three are pretty common benchmarks for multi-objective optimization.

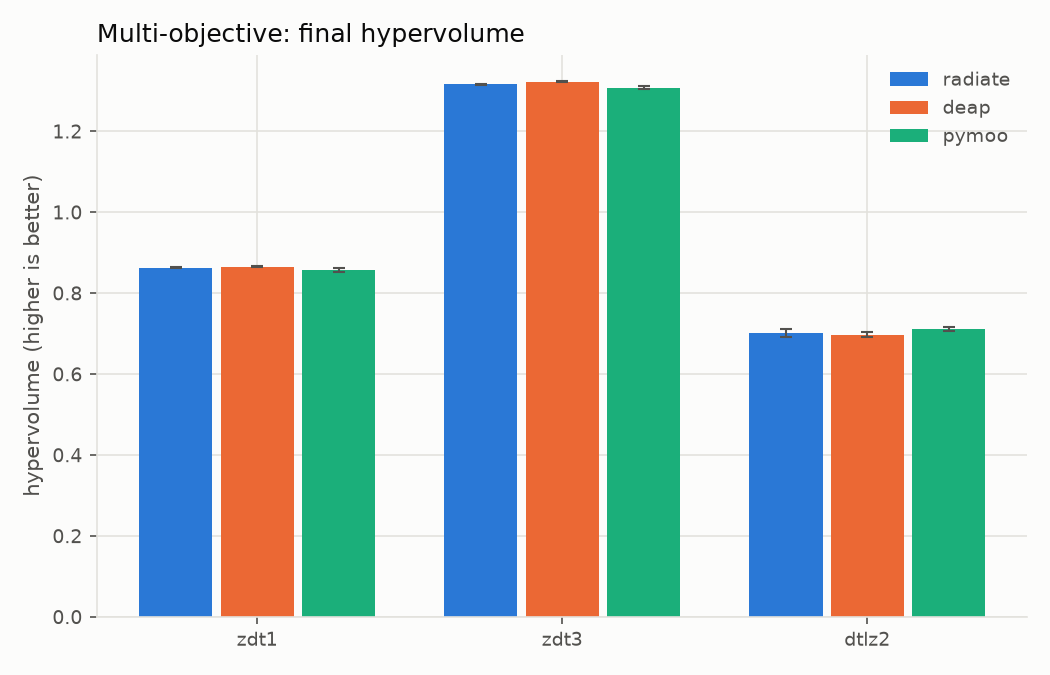

ZDT1

Speed

Below is a log normalized comparison of speed - some problems are just slower to converge so log scale is needed.

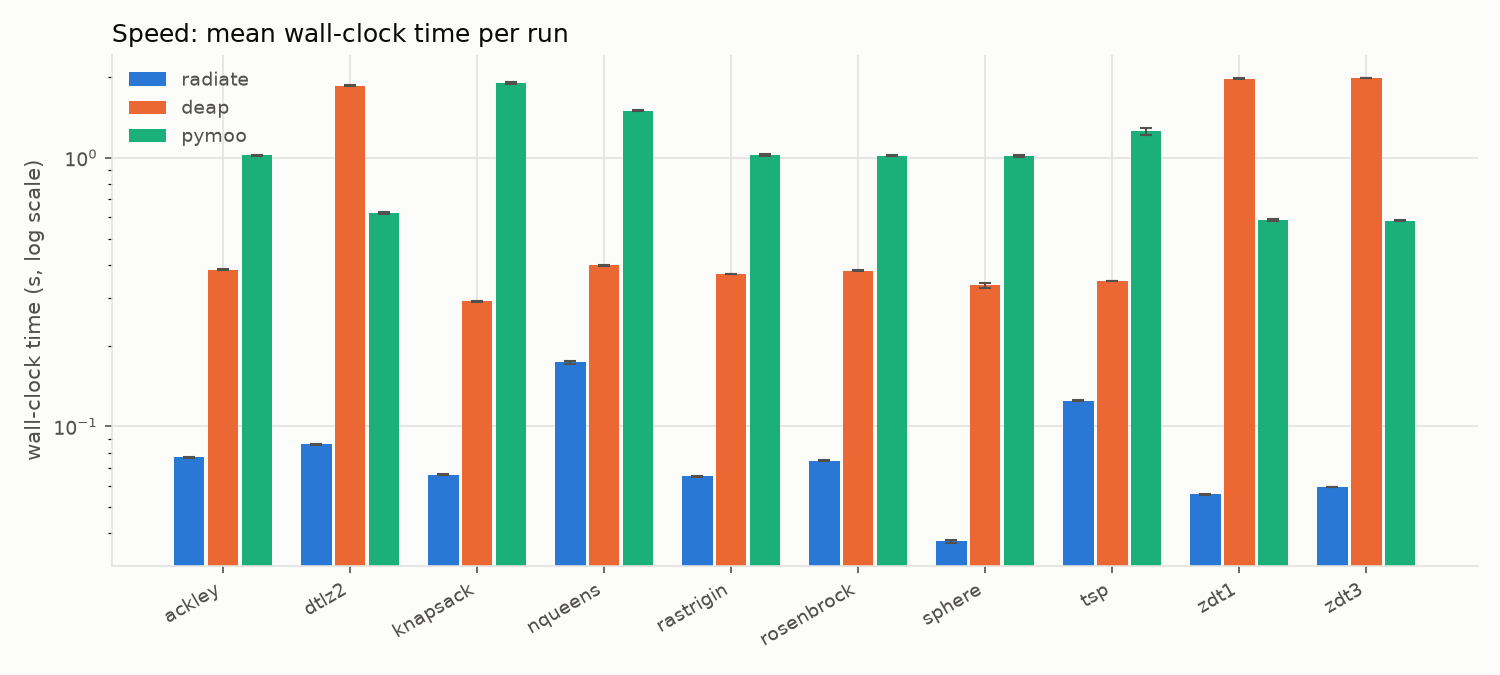

Speed Comparison

And now a raw comparison. Anything left of the black line indicates that radiate is slower vs the right side where radiate is faster & by how much.

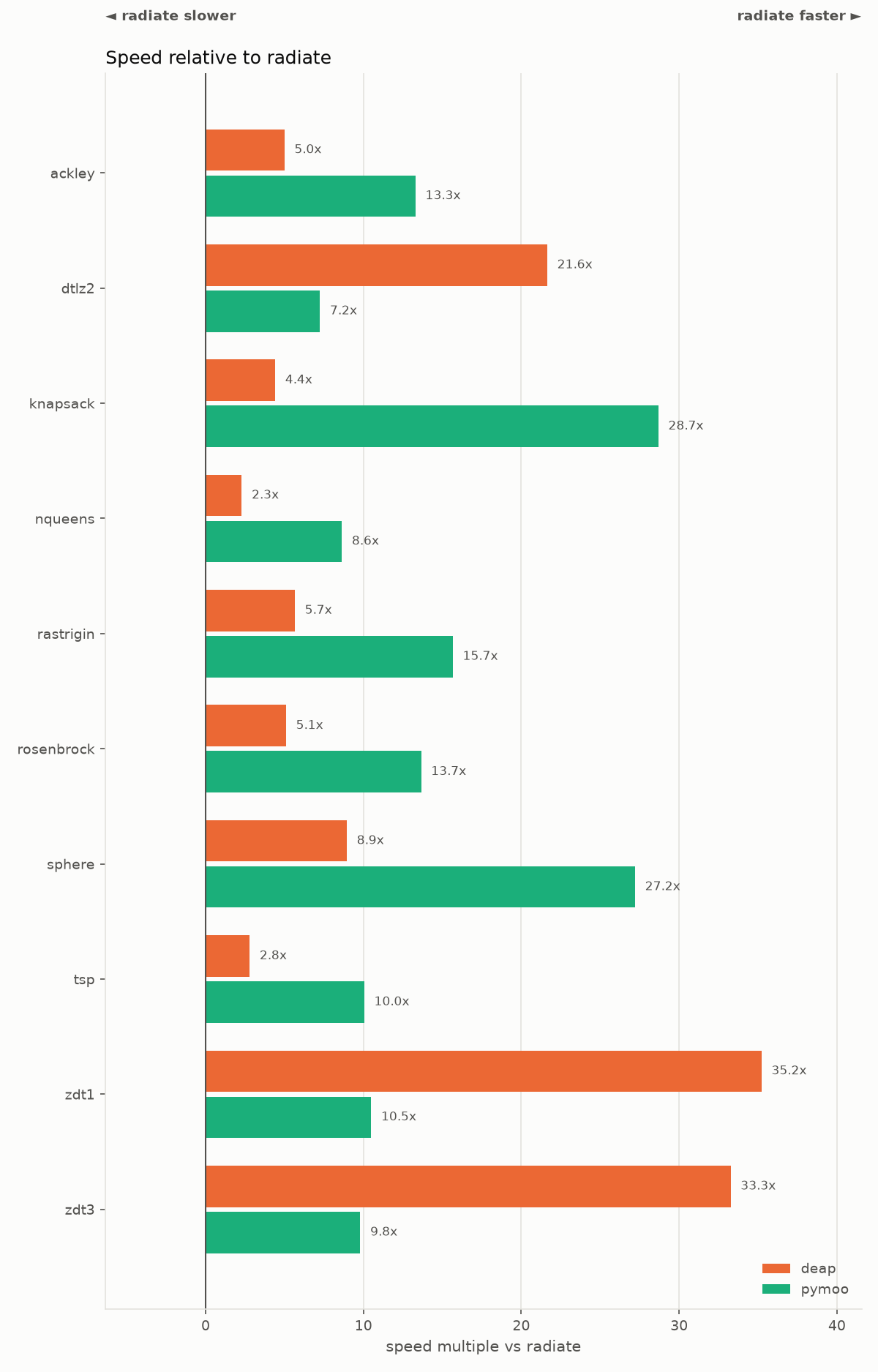

Speed vs radiate

Raw Results

problem library best_mean best_std time_mean_s time_std_s n_trials
ackley radiate 0.0207 0.0106 0.0767 0.0003 10
ackley deap 8.9594 0.4361 0.3832 0.0009 10
ackley pymoo 1.8515 0.3751 1.0203 0.0049 10
dtlz2 radiate 0.7012 0.0100 0.0858 0.0004 10
dtlz2 deap 0.6974 0.0061 1.8562 0.0066 10
dtlz2 pymoo 0.7111 0.0056 0.6213 0.0047 10
knapsack radiate 2090.0000 0.0000 0.0662 0.0005 10
knapsack deap 1982.4000 35.0498 0.2919 0.0009 10
knapsack pymoo 2090.0000 0.0000 1.8985 0.0154 10
nqueens radiate 1.2000 0.6325 0.1735 0.0021 10
nqueens deap 2.0000 0.4714 0.3972 0.0008 10
nqueens pymoo 1.9000 0.8756 1.4980 0.0067 10
rastrigin radiate 10.8435 4.8314 0.0654 0.0003 10
rastrigin deap 182.1082 14.1792 0.3695 0.0007 10
rastrigin pymoo 14.1199 3.7540 1.0233 0.0080 10
rosenbrock radiate 33.4129 14.9997 0.0745 0.0003 10
rosenbrock deap 106.0411 4.8883 0.3799 0.0009 10
rosenbrock pymoo 90.1068 23.4850 1.0176 0.0070 10
sphere radiate 0.0043 0.0019 0.0374 0.0005 10
sphere deap 3.9225 0.3664 0.3347 0.0060 10
sphere pymoo 0.0292 0.0061 1.0179 0.0088 10
tsp radiate 499.1356 12.1659 0.1248 0.0007 10
tsp deap 975.7242 21.3226 0.3484 0.0008 10
tsp pymoo 538.5293 54.1085 1.2541 0.0354 10
zdt1 radiate 0.8628 0.0010 0.0560 0.0003 10
zdt1 deap 0.8658 0.0006 1.9708 0.0042 10
zdt1 pymoo 0.8568 0.0056 0.5870 0.0049 10
zdt3 radiate 1.3161 0.0019 0.0595 0.0002 10
zdt3 deap 1.3227 0.0010 1.9806 0.0037 10
zdt3 pymoo 1.3079 0.0044 0.5837 0.0033 10
